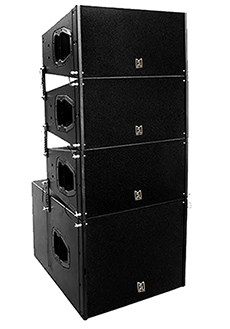

The Q1 speaker adopts a passive dual frequency design, equipped with two 10 "low-frequency units and one 1.3" high-frequency compression driver unit, as well as a drum waveguide. The 75 ° horizontal constant pointing characteristic can control the lower limit to 400Hz, while the 15 ° vertical high-frequency diffusion angle enables Q1 to be used for vertical arrays and generate curved coherent Wavefront in front of the array. The mechanical structure of the speaker, combined with acoustic design, allows the vertical coupling angle between each speaker to be adjusted between 0 ° and 14 °.

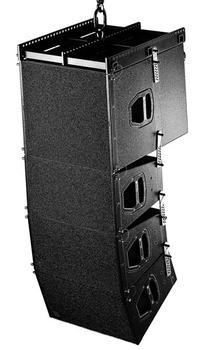

Therefore, according to the different situations and requirements of users and venues, the Q1 array can be combined from 2 speakers (with a diffusion angle of 15 ° to 30 °) to 20 speakers. Q1 box structure is made of solid marine plywood. The surface of the box is coated with a layer of anti-collision paint. The front panel of the speaker is protected by a solid metal grille, and covered with a layer of replaceable acoustic foam material. The side panel is fused with a pair of handles, and the rear panel is embedded with two EP5 or NL4 parallel interfaces.
data
Component 2 x 10 "low-frequency drive unit/1.3" high-frequency compression drive unit
Maximum sound pressure level (1 meter, free field) 1 with D6/D12 135/139 dB SPL
Rated power (RMS/peak 10 ms) 800/1600 watts
Frequency response (-5 dB) 60/1002 Hz -17 kHz
Pointing characteristics (horizontal x vertical) 75 ° x 15 ° 3
D6/D12: Number of driving boxes per channel 2/24
Dimensions in millimeters (H x W x D) 308 x 580 x 410
Weight kg 22
Dimensions in inches (H x W x D) 12.1 x 22.8 x 16.1
Weight pounds 49
1 Maximum peak sound pressure level test signal: powder noise with Crest factor of 4
2 Standard/CUT mode
3 ≥ 400 Hz in dipole direction
In practical applications, D12 can drive up to three speakers of the same model per channel in lower continuous power or low-temperature environments
