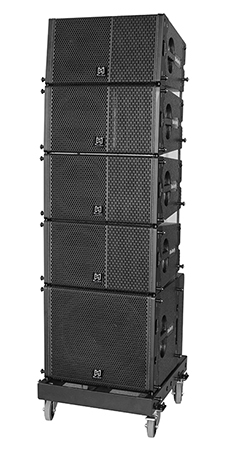

Model: TW10 is a single 10 inch two frequency linear array speaker

1. The TW10 is a 10 inch bass speaker and two 1.4 inch tweeters. The compressed cavity phase plug installed in the front of the 10 inch box is combined with an optimized waveform generator coupled between the two tweeters to form a 10 ° vertical wavefront, generating very thick low-frequency and bright tweets.
The design concept of each individual item in the TW series provides a wide range of individual matching solutions for this series. The TW10 is also the most versatile speaker on the company's product line. You only need 2 TW10, and you can perform a high-quality, small-scale sound reinforcement system.
Parameters:
Bass 1x 10“
High pitched 2x44 core
Frequency response range 80-19k Hz
Impedance 8 Ω
Rated power (W) 600W
Peak power 1200W
Sensitivity 95dB
Maximum sound pressure (dB) 12dB
Coverage angle 120 ° x10 °
Frequency division point 1.8kHz
Box structure birch plywood
Surface treatment of the box with spot paint
System type crossover inside built-in frequency division
Connect SPEAKON * 2
