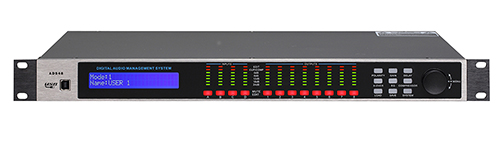

ADS24/ADS26/ADS48

Functional features:
1. Adopting an audio processor with 96KHz sampling processing, a 32-bit high-precision DSP processor, and high-performance 24-bit A/D and D/A converters, ensuring high audio quality;
2. There are multiple models to choose from, including 2 in and 4 out, 2 in and 6 out, 4 in and 6 out, and 4 in and 8 out, allowing for flexible combination of various types of audio systems;
3. Each input has 31 graphic balanced GEQ+10 PEQ segments, and the output has 10 PEQ segments;
4. Each input channel is equipped with gain, phase, delay, and mute functions, and each output channel is equipped with gain, phase, frequency division, voltage limit, mute, and delay functions;
5. Each output delay can be adjusted, with a maximum of 1000MS and a minimum adjustment step of 0.021MS;
6. The input and output channels can achieve full routing, and can synchronize multiple output channels to debug all parameters and copy channel parameters;
7. The slope of variable high/low pass filters can be set, with Bessel and Butterworth set to 12dB, 18dB, and 24dB per octave, and Linkwitz Reiley set to 12dB, 18dB, 24dB, 36dB, and 48dB per octave;
8. Each machine can store up to 12 user programs according to user needs;
9. Equipped with panel operation lock to prevent work state disorder caused by misoperation;
10. It is equipped with multiple control methods such as USB, RS485, and RS232. It can be cascaded through the RS485 interface and has an RS232 serial port, which can be remotely edited and controlled through a third party.
